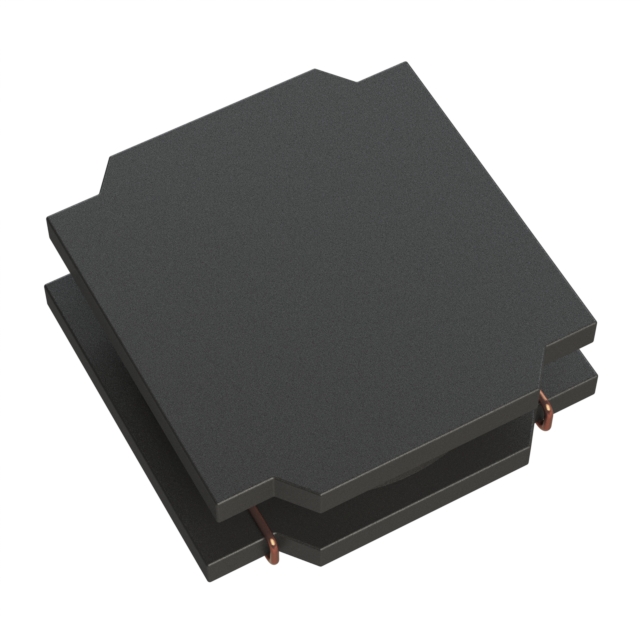

SWPA3010S330MT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 33UH 300MA 2.015OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWPA3010S330MT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 33UH 300MA 2.015OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWPA3010S330MT |
|---|---|
| Current - Saturation (Isat) | 290 mA |
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) [Max] | 2.015 Ohm |
| Frequency - Self Resonant | 18 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.15 | |
Description
General part information
SWPA3010S330MT
33 µH Shielded Drum Core, Wirewound Inductor 300 mA 2.015Ohm Max Nonstandard
