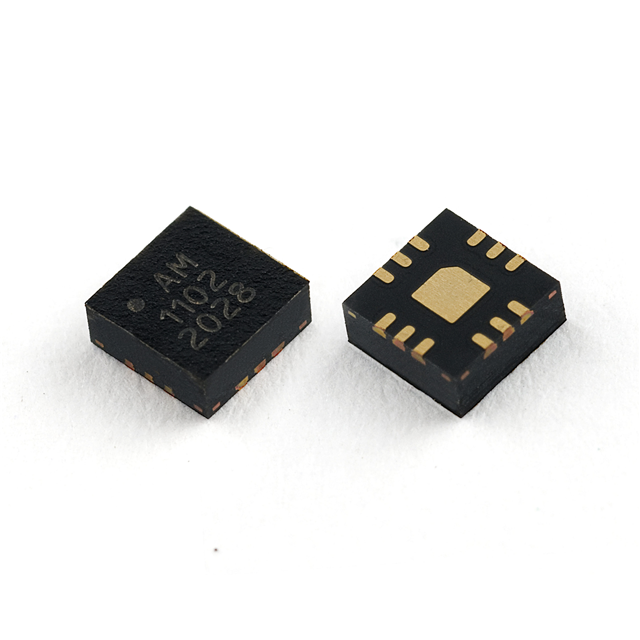

AM1102
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-22GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
AM1102
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-22GHZ 12QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1102 |
|---|---|
| Current - Supply | 46 mA |
| Frequency [Max] | 22 GHz |
| Frequency [Min] | 0 Hz |
| Gain | 15 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 2.3 dB |
| P1dB | 15 dBm |
| Package / Case | 12-TFQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 12-QFN (3x3) |
| Test Frequency | 10 GHz |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 106.58 | |
| 10 | $ 100.49 | |||
| 25 | $ 94.40 | |||
| 100 | $ 88.31 | |||
| Digi-Reel® | 1 | $ 106.58 | ||
| 10 | $ 100.49 | |||
| 25 | $ 94.40 | |||
| 100 | $ 88.31 | |||
| Tape & Reel (TR) | 2000 | $ 75.38 | ||
Description
General part information
AM1102
RF Amplifier IC General Purpose 0Hz ~ 22GHz 12-QFN (3x3)
