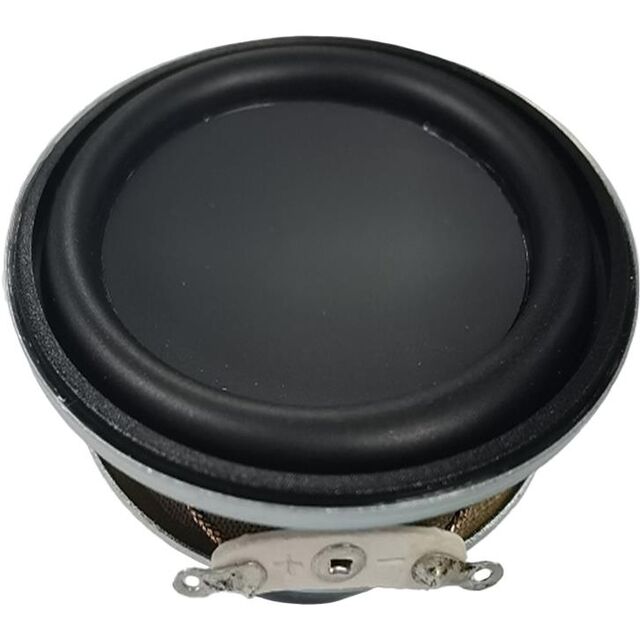

D0050004NR522WER
ActiveStetron
LOUDSPEAKER, 50 MM ; 8 OHMS, 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D0050004NR522WER
ActiveStetron
LOUDSPEAKER, 50 MM ; 8 OHMS, 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D0050004NR522WER |
|---|---|
| Distortion Rating [Max] | 5 % |
| Efficiency - dBA | 82 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 240 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 240 Hz |
| Impedance | 4 Ohms |
| Ingress Protection | IPX4 |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Port Location | Top |
| Power - Max [Max] | 6 W |
| Power - Rated | 5 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.969 in |
| Size / Dimension [diameter] | 50 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.68 | |
| 10 | $ 6.40 | |||
| 50 | $ 6.02 | |||
Description
General part information
D0050004NR522WER
4 Ohms General Purpose Speaker 5 W 240 Hz ~ 10 kHz Top Round
