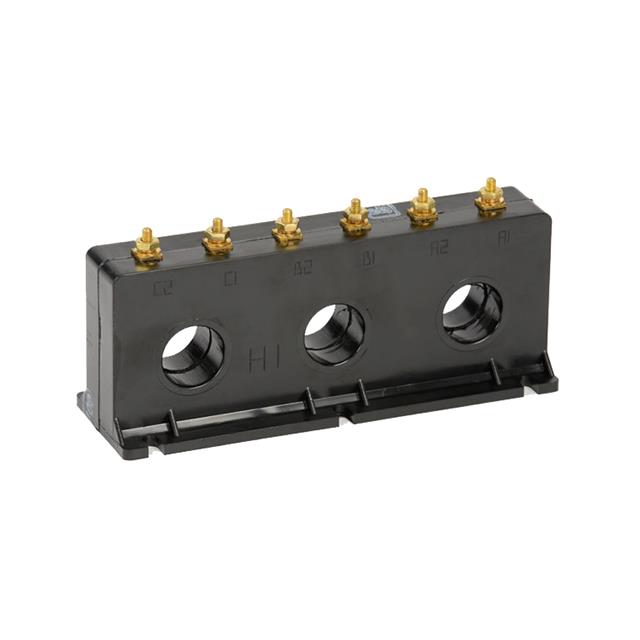

37028
ActiveSimpson Electric
CURR SENSE XFMR CHAS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37028 |
|---|---|
| Current Ratio | 150:5 |
| Frequency Range [Max] | 400 Hz |
| Frequency Range [Min] | 50 Hz |
| Height - Seated (Max) [Max] | 3.22 in |
| Height - Seated (Max) [Max] | 81.79 mm |
| Mounting Type | Chassis Mount |
| Size / Dimension [x] | 7.13 in |
| Size / Dimension [x] | 181.1 mm |
| Size / Dimension [y] | 56.39 mm |
| Size / Dimension [y] | 2.22 in |
| Termination Style | Stud |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
37028
Current Sense Transformer 50Hz ~ 400Hz Chassis Mount
