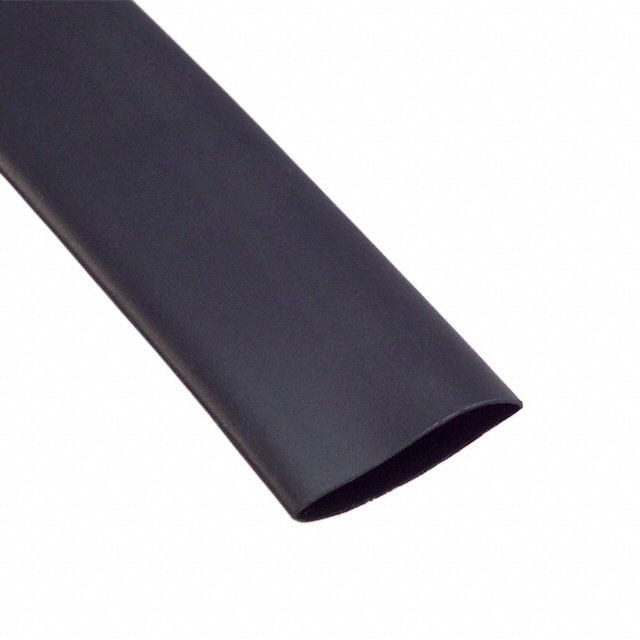

SH275-1/2
ActiveDaburn Electronics
HEATSHRINK BLACK 1/2IN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SH275-1/2
ActiveDaburn Electronics
HEATSHRINK BLACK 1/2IN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SH275-1/2 |
|---|---|
| Color | Black |
| Features | Flame Retardant, Abrasion Resistant |
| Inner Diameter - Recovered [diameter] | 0.25 in |
| Inner Diameter - Recovered [diameter] | 6.35 mm |
| Inner Diameter - Supplied [diameter] | 12.7 mm |
| Inner Diameter - Supplied [diameter] | 0.5 in |
| Length | 0.125 ', 0.25 ft, 5 ', 25 ft |
| Length | 38.1 mm, 76.2 mm, 1.52 m, 7.6 m, 152.4 mm |
| Length | 1.5 ", 3 ", 6 " |
| Length | Enter Number of Feet in Order Quantity |
| Length | 0.5 ' |
| Length [x] | 61 m, 30.5 m |
| Length [x] | 200 ft, 100 ft |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness [custom] | 0.025 " |
| Recovered Wall Thickness [custom] | 0.64 mm |
| Shelf Life | 60 Months |
| Shrink Temperature | 90 °C |
| Shrinkage Ratio | 2 to 1 |
| Spool Size | 61 m |
| Spool Size | 200 ' |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.75 | |
| 1 | $ 21.85 | |||
| 5 | $ 18.40 | |||
| 5 | $ 5.52 | |||
| 10 | $ 16.68 | |||
| 10 | $ 4.26 | |||
| 25 | $ 3.91 | |||
| 25 | $ 15.53 | |||
| 50 | $ 3.68 | |||
| 50 | $ 0.11 | |||
| 50 | $ 0.37 | |||
| 50 | $ 0.20 | |||
| 50 | $ 14.95 | |||
| 100 | $ 0.35 | |||
| 100 | $ 0.19 | |||
| 100 | $ 3.45 | |||
| 100 | $ 14.61 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.31 | |||
| 250 | $ 0.16 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 500 | $ 0.15 | |||
| 500 | $ 0.28 | |||
| 1250 | $ 0.15 | |||
| 1250 | $ 0.28 | |||
| 1250 | $ 0.08 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 2.51 | ||
| 5 | $ 2.28 | |||
| 10 | $ 1.73 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.55 | |||
| 100 | $ 1.46 | |||
| Spool | 1 | $ 73.61 | ||
| 5 | $ 69.01 | |||
| 10 | $ 64.41 | |||
| 25 | $ 61.19 | |||
| 50 | $ 59.81 | |||
| 100 | $ 58.43 | |||
| 200 | $ 0.90 | |||
| 400 | $ 0.79 | |||
| 600 | $ 0.74 | |||
| 1000 | $ 0.72 | |||
Description
General part information
SH275-1/2
Heat Shrink Tubing, Flexible 0.500" (12.70mm) 2 to 1 Black 200.0' (61.0m)
