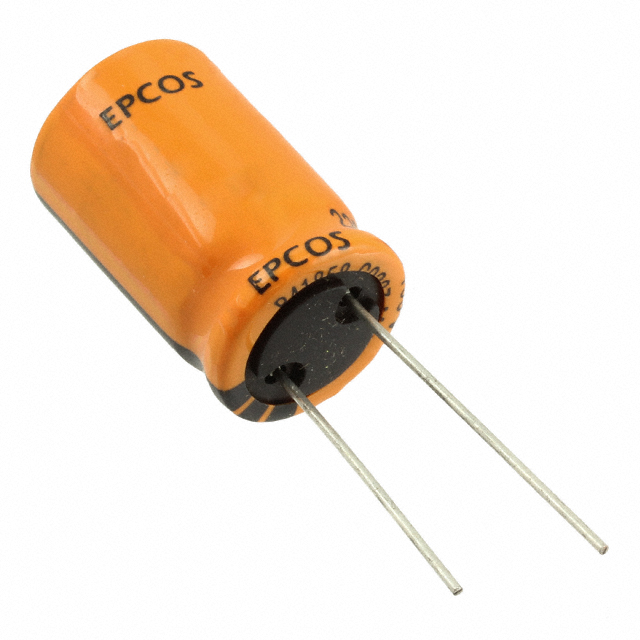

B41858C4478M9
ActiveEPCOS - TDK Electronics
CAP ALUM 4700UF 20% 16V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B41858C4478M9
ActiveEPCOS - TDK Electronics
CAP ALUM 4700UF 20% 16V RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B41858C4478M9 |
|---|---|
| Applications | Automotive |
| Capacitance | 4700 µF |
| ESR (Equivalent Series Resistance) | 27 mOhm |
| Height - Seated (Max) [Max] [z] | 1.063 in |
| Height - Seated (Max) [Max] [z] | 27 mm |
| Impedance | 24 mOhms |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 2.941 A |
| Size / Dimension [diameter] | 0.709 " |
| Size / Dimension [diameter] | 18 mm |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
B41858C4478M9
4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 27mOhm @ 10kHz 5000 Hrs @ 105°C
