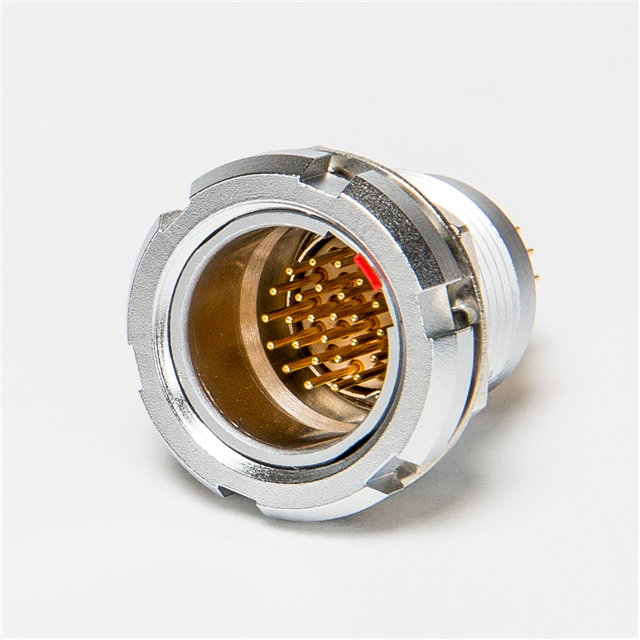

R-F2KN260400000
ActiveNextron
2K, FIXED SOCKET, 26PIN, IP68
Deep-Dive with AI
Search across all available documentation for this part.
R-F2KN260400000
ActiveNextron
2K, FIXED SOCKET, 26PIN, IP68
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R-F2KN260400000 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock, Push-Pull |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 26 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 0 ° |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 2K |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 59.05 | |
| 2 | $ 59.04 | |||
| 10 | $ 55.35 | |||
| 20 | $ 52.09 | |||
Description
General part information
R-F2KN260400000
26 Position Circular Connector Receptacle, Female Sockets Solder Cup
