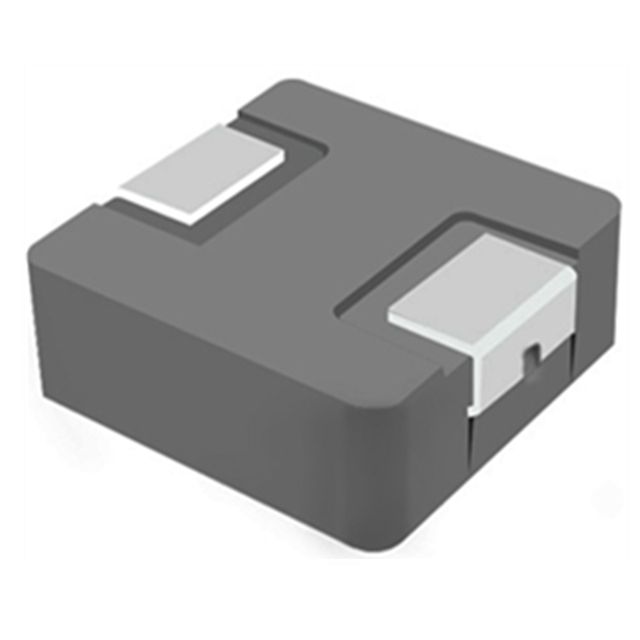

MS06303R3MS001
ActiveCOILMX
INDUCTANCE 3.3 H TOL 20%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS06303R3MS001
ActiveCOILMX
INDUCTANCE 3.3 H TOL 20%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS06303R3MS001 |
|---|---|
| Current - Saturation (Isat) | 9.5 A |
| Current Rating (Amps) | 6.5 A |
| DC Resistance (DCR) [Max] | 26 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD |
| Shielding | Shielded |
| Size / Dimension [x] | 0.281 in |
| Size / Dimension [x] | 7.15 mm |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [y] | 0.26 " |
| Supplier Device Package | 2-SMD |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.49 | |
Description
General part information
MS06303R3MS001
3.3 µH Shielded Inductor 6.5 A 26mOhm Max 2-SMD
