511KH14-OP10TB
ActiveYAGEO
MOV DISC 14MM 510V 4.5KA 125 B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
511KH14-OP10TB
ActiveYAGEO
MOV DISC 14MM 510V 4.5KA 125 B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 511KH14-OP10TB |
|---|---|
| Capacitance @ Frequency | 390 pF |
| Current - Surge | 4.5 kA |
| Energy | 121 J |
| Maximum AC Volts [Max] | 320 V |
| Maximum DC Volts [Max] | 415 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14 mm |
| Package / Case | Disc |
| Varistor Voltage (Max) [Max] | 561 V |
| Varistor Voltage (Min) [Min] | 459 V |
| Varistor Voltage (Typ) | 510 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 500 | $ 0.21 | |
Description
General part information
511KH14-OP10TB

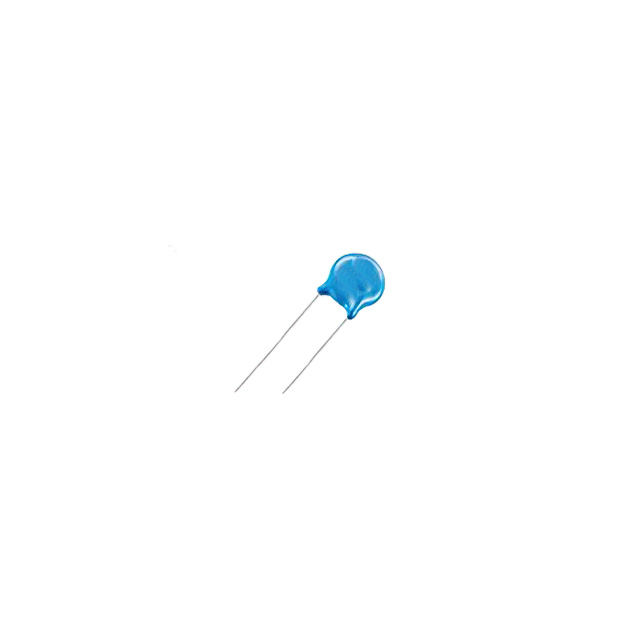

510 V 4.5 kA Varistor 1 Circuit Through Hole Disc 14mm
Documents
Technical documentation and resources
