2002-31-1
ActiveDeschner Corporation

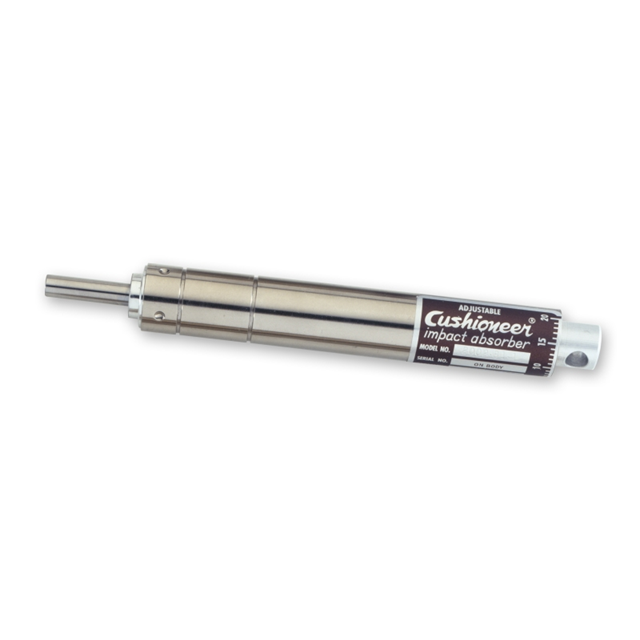

1" STROKE STANDARD DUTY SHOCK AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2002-31-1
ActiveDeschner Corporation
1" STROKE STANDARD DUTY SHOCK AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2002-31-1 |
|---|---|
| Actuation Force | 22.2 N |
| Actuation Force | 5 lbf |
| Cushioning | Adjustable |
| Impact Capacity per Cycle | 800 inlb |
| Impact Capacity per Cycle | 90.39 J |
| Impact Velocity | 3.7 m/s |
| Impact Velocity | 12 ft/s |
| Length - Extended [x] | 7.83 in |
| Length - Extended [x] | 198.88 mm |
| Operating Temperature [Max] | 54 °C |
| Operating Temperature [Min] | 4.4 °C |
| Operation | Single-Acting, Push |
| Reset Force | 4 lbf |
| Reset Force | 17.8 N |
| Reset Time | 0.058 s |
| Stroke Length | 1 in |
| Stroke Length | 25.4 mm |
| Technology | Hydraulic |
| Type | Shock Absorber |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 322.02 | |
Description
General part information
2002-31-1
1" STROKE STANDARD DUTY SHOCK AB
Documents
Technical documentation and resources
