8169
ActiveRadial Magnets, Inc.

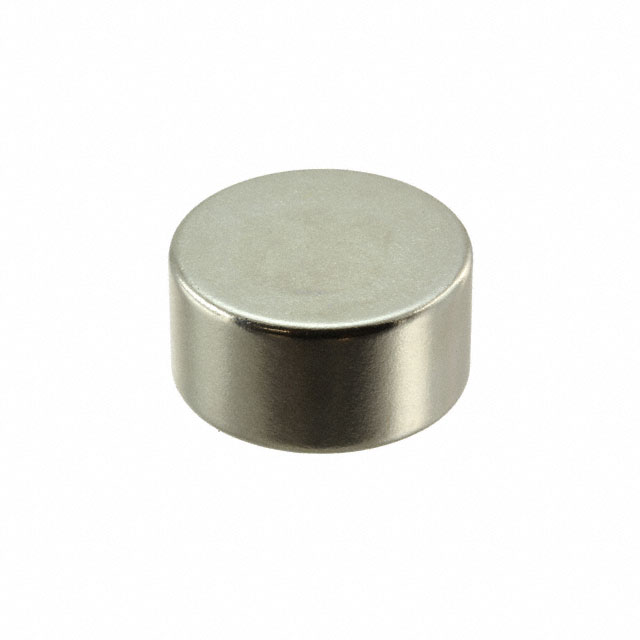

MAGNET 0.750"D X 0.375"THICK CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8169
ActiveRadial Magnets, Inc.
MAGNET 0.750"D X 0.375"THICK CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8169 |
|---|---|
| Finish | NiCuNi |
| Gauss Strength | 4172 G |
| Grade | N35 |
| Magnetization | Axial |
| Material | Neodymium Iron Boron (NdFeB) |
| Operating Temperature | 80 °C |
| Shape | Cylindrical |
| Size [diameter] | 0.75 in |
| Size [diameter] | 19 mm |
| Size [z] | 9.53 mm |
| Size [z] | 0.375 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.05 | |
| 10 | $ 2.49 | |||
| 100 | $ 1.78 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 1.41 | |||
| 5000 | $ 1.32 | |||
Description
General part information
8169
Magnet Neodymium Iron Boron (NdFeB) N35 0.750" Dia x 0.375" H (19.0mm x 9.53mm)
