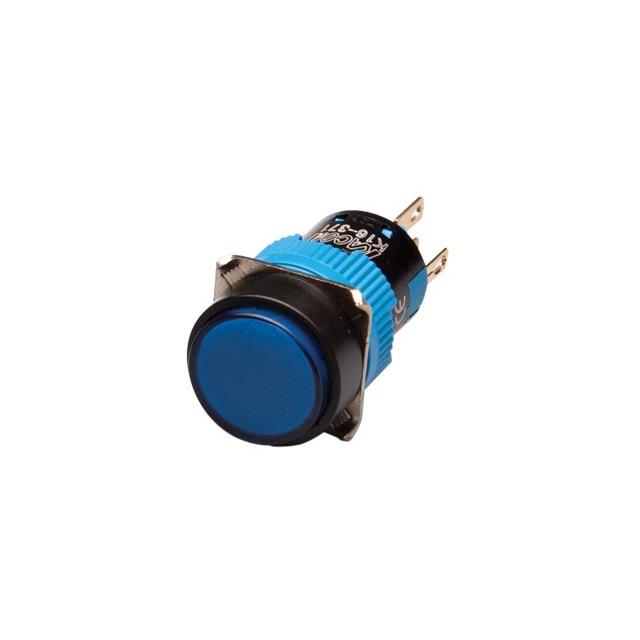

K16-371-B-6VDC
ActiveKacon
16MM SWITCH PUSH ROUND SPDT BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K16-371-B-6VDC |
|---|---|
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Blue |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.84 | |
Description
General part information
K16-371-B-6VDC
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
