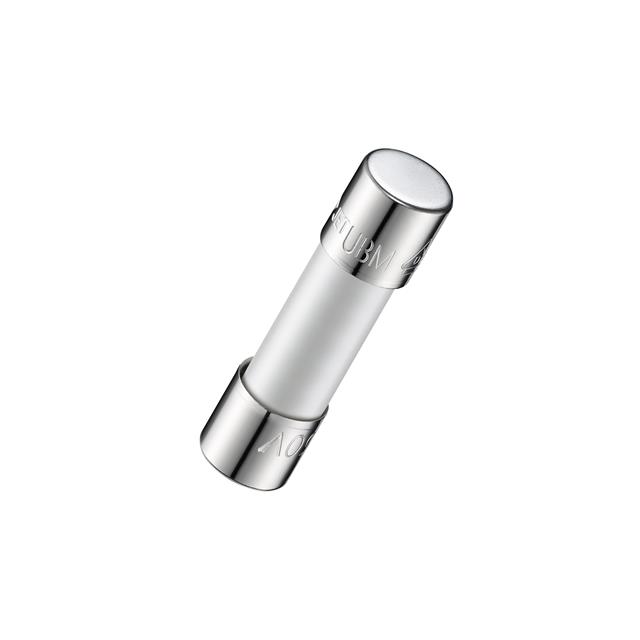

VUC UBM 8A 250V (PF)
ActiveConquer
FUSE CERAMIC 8A 250VAC 5X20MM
Deep-Dive with AI
Search across all available documentation for this part.
VUC UBM 8A 250V (PF)
ActiveConquer
FUSE CERAMIC 8A 250VAC 5X20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VUC UBM 8A 250V (PF) |
|---|---|
| Approval Agency | VDE, PSE, CCC, CSA, UL |
| Breaking Capacity @ Rated Voltage | 1.5 kA |
| Current Rating (Amps) | 8 A |
| DC Cold Resistance | 0.0106 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 91.5381 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.86 | |
| 5 | $ 0.72 | |||
| 10 | $ 0.66 | |||
| 50 | $ 0.55 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| 5000 | $ 0.33 | |||
Description
General part information
VUC UBM 8A 250V (PF)
8 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
