806-020-NF9-5PBC
ActiveGlenair
CIRCULAR CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
806-020-NF9-5PBC
ActiveGlenair
CIRCULAR CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 806-020-NF9-5PBC |
|---|---|
| Applications | Aerospace, Aviation, Military |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | Non Flammable |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | C |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 9 |
| Shell Size - Insert [Min] | 5 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1145.84 | |
Description
General part information
806-020-NF9-5PBC

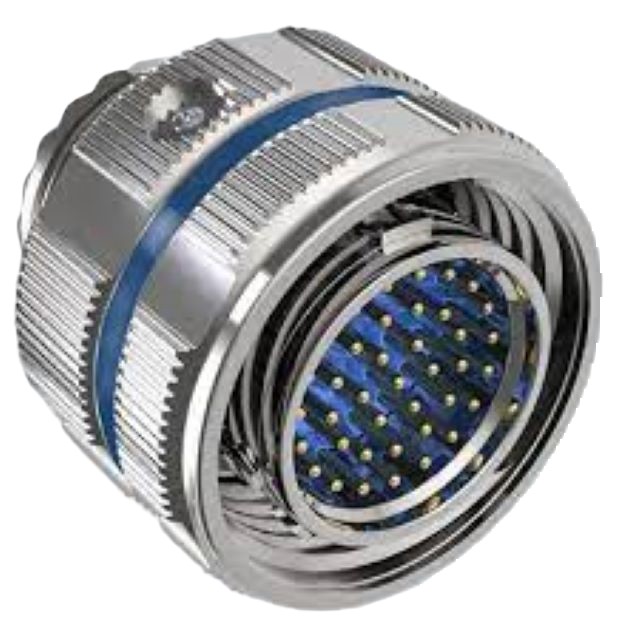

5 Position Circular Connector Receptacle, Male Pins Crimp
