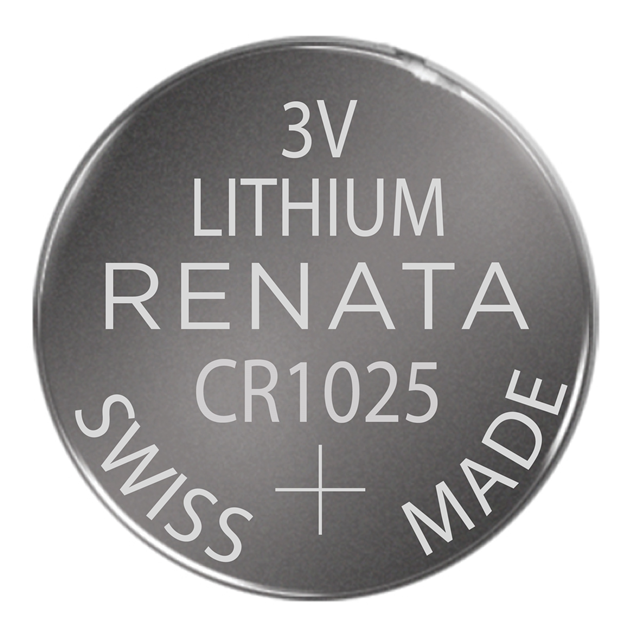

CR1025
ActiveRenata Batteries
BATTERY LITHIUM 3V COIN 10MM
Deep-Dive with AI
Search across all available documentation for this part.
CR1025
ActiveRenata Batteries
BATTERY LITHIUM 3V COIN 10MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CR1025 |
|---|---|
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 30 mAh |
| Discharge Rate | 400 µA |
| Size / Dimension [diameter] | 0.39 in |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [z] | 2.5 mm |
| Size / Dimension [z] | 0.1 " |
| Termination Style | Requires Holder |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CR1025
Coin, 10.0mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
