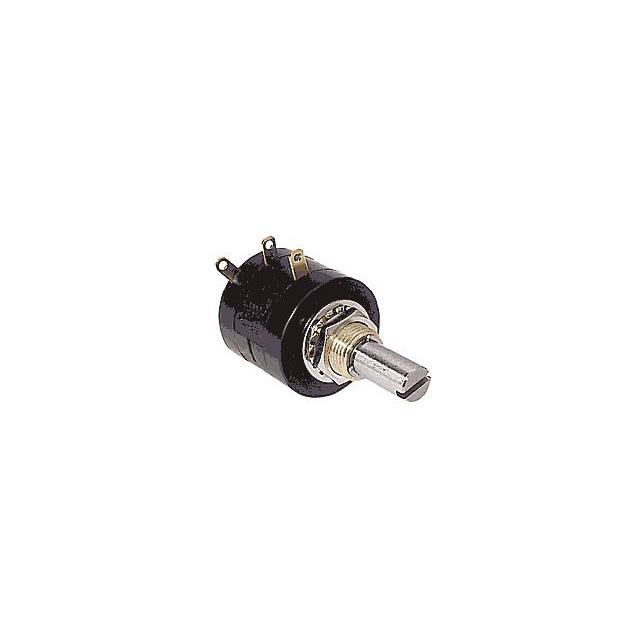

MH22B-10-1K
ActiveETI Systems
POT 1K 10-TURN 2W HYBRID LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MH22B-10-1K
ActiveETI Systems
POT 1K 10-TURN 2W HYBRID LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MH22B-10-1K |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 0.82 in |
| Actuator Length [z] | 20.83 mm |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 1 kOhms |
| Resistive Material | Hybrid |
| Rotation | 3600 ° |
| Size - Body | Round |
| Size - Body [diameter] | 0.88 in |
| Size - Body [diameter] | 22.35 mm |
| Taper | Linear |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 124.03 | |
| 10 | $ 111.63 | |||
| 100 | $ 83.72 | |||
Description
General part information
MH22B-10-1K
1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Hybrid 2W Solder Lug
