SYA10-09WV-ET
ActiveJAM
1 MM W TO B CONNECTOR 9P HEADER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SYA10-09WV-ET
ActiveJAM
1 MM W TO B CONNECTOR 9P HEADER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SYA10-09WV-ET |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | White |
| Insulation Height | 5.4 mm |
| Insulation Height [z] | 0.213 in |
| Insulation Material | Polyamide (PA6T), Glass Filled, Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| Tape & Reel (TR) | 1800 | $ 0.21 | ||
| 3600 | $ 0.19 | |||
| 5400 | $ 0.18 | |||
| 9000 | $ 0.17 | |||
| 12600 | $ 0.17 | |||
| 18000 | $ 0.16 | |||
| 45000 | $ 0.15 | |||
Description
General part information
SYA10-09WV-ET

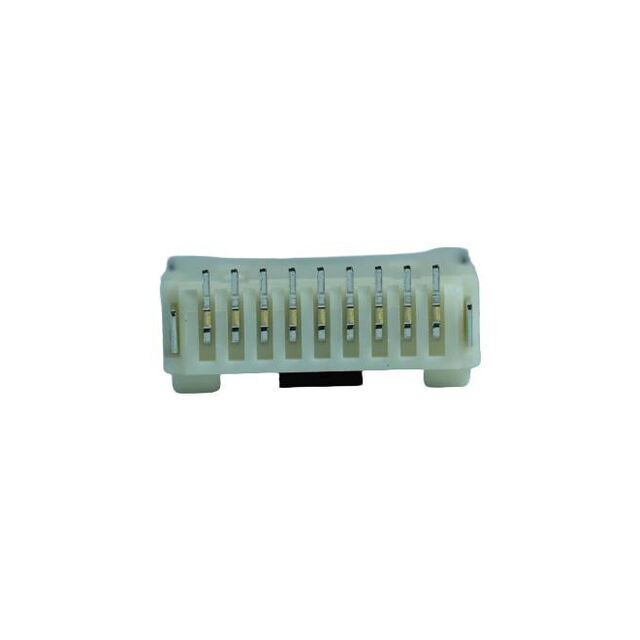

Connector Header Surface Mount 9 position 0.039" (1.00mm)
