CS9462310BM
ActiveCooling Source
23X23X10MM, T412
Deep-Dive with AI
Search across all available documentation for this part.
CS9462310BM
ActiveCooling Source
23X23X10MM, T412
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS9462310BM |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Fin Height [z] | 0.394 in |
| Fin Height [z] | 10 mm |
| Length | 23 mm |
| Length | 0.906 " |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Shape | Square, Pin Fins |
| Thermal Resistance @ Forced Air Flow | 200 LFM, 7.42 °C/W |
| Type | Top Mount |
| Width [x] | 0.906 in |
| Width [x] | 23 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.57 | |
| 50 | $ 1.80 | |||
| 100 | $ 1.77 | |||
| 250 | $ 1.74 | |||
| 500 | $ 1.71 | |||
| 1000 | $ 1.68 | |||
| 2500 | $ 1.65 | |||
| 5001 | $ 1.64 | |||
| 10000 | $ 1.63 | |||
| 20000 | $ 1.62 | |||
| 25000 | $ 1.61 | |||
| 50000 | $ 1.60 | |||
Description
General part information
CS9462310BM

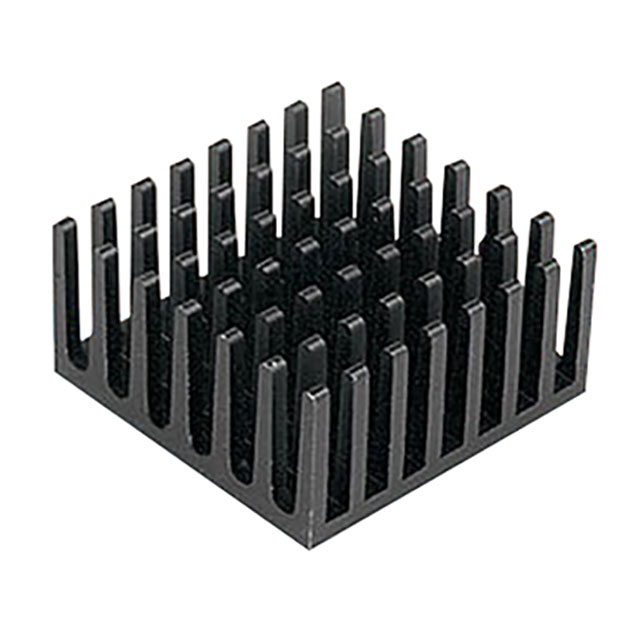

Heat Sink Aluminum Top Mount
Documents
Technical documentation and resources
No documents available
