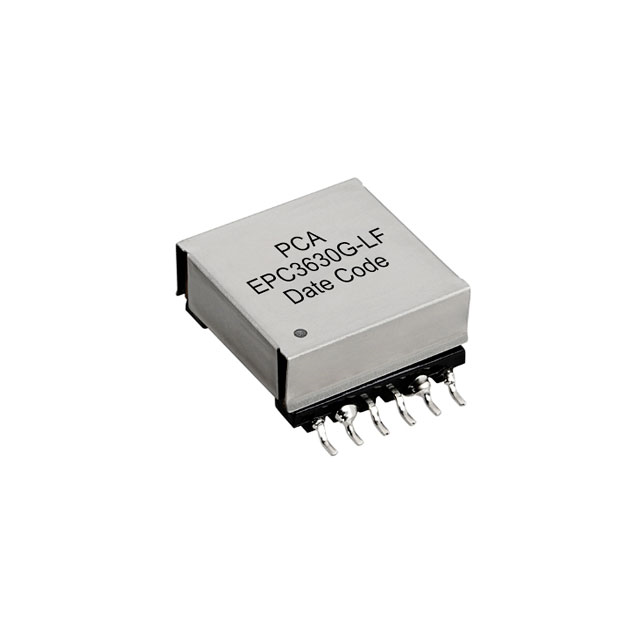

EPC3630G-LF
ActivePCA Electronics, Inc.
XFMR FLYBACK DC/DC CONV 15UH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC3630G-LF
ActivePCA Electronics, Inc.
XFMR FLYBACK DC/DC CONV 15UH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC3630G-LF |
|---|---|
| Chipset Manufacturer | Analog Devices |
| Footprint [x] | 26.31 mm |
| Footprint [x] | 1.036 in |
| Footprint [y] | 31.75 mm |
| Footprint [y] | 1.25 in |
| Frequency | 250 kHz |
| Height - Seated (Max) [Max] | 0.54 " |
| Height - Seated (Max) [Max] | 13.72 mm |
| Inductance @ Frequency | 100 kHz, 15 µH |
| Intended Chipset | LT4295 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Auxiliary | 24 V |
| Voltage - Isolation | 1500 VAC |
| Voltage - Primary [Max] | 57 V |
| Voltage - Primary [Min] | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.79 | |
| 5 | $ 12.67 | |||
| 10 | $ 10.57 | |||
| 25 | $ 8.47 | |||
| 50 | $ 6.68 | |||
| 100 | $ 5.15 | |||
| 250 | $ 4.38 | |||
Description
General part information
EPC3630G-LF
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
