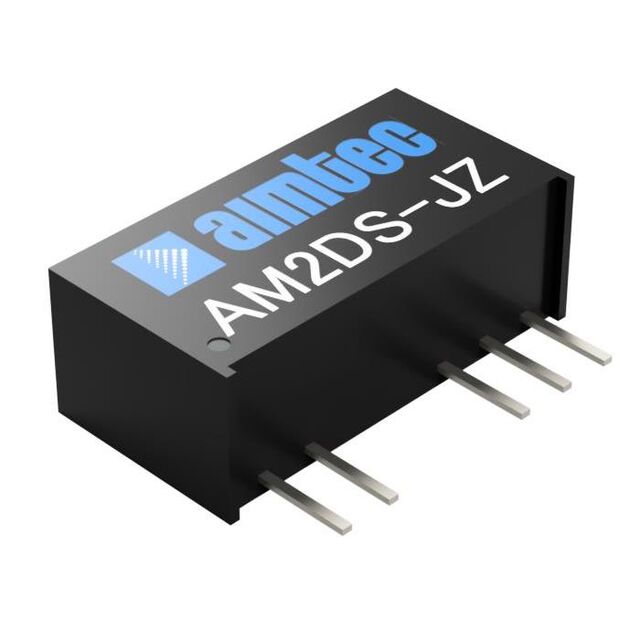

AM2DS-2405SH30JZ
Obsoleteaimtec
MODULE DC-DC 24VIN 1-OUT 5V 0.4A 2W 4-PIN SIP MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM2DS-2405SH30JZ
Obsoleteaimtec
MODULE DC-DC 24VIN 1-OUT 5V 0.4A 2W 4-PIN SIP MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM2DS-2405SH30JZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7.1 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AM2DS-2405SH30JZ
Isolated Module DC DC Converter 1 Output 5V 400mA 21.6V - 26.4V Input
