08097262
ActiveMenbers

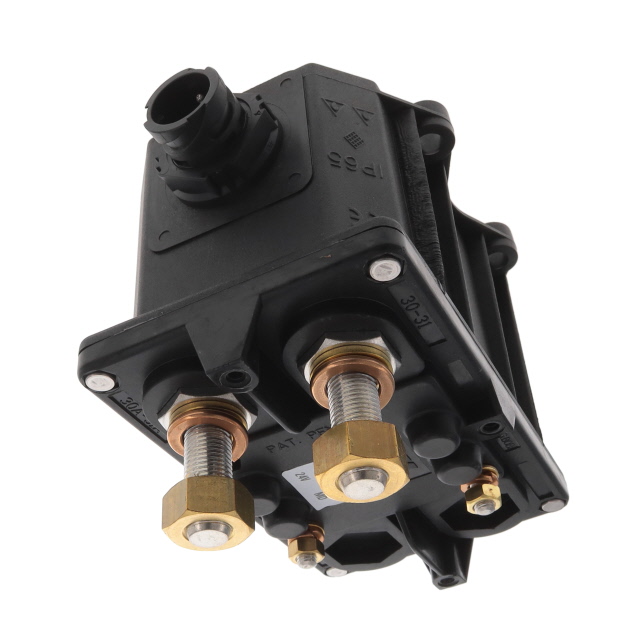

SWITCH SELECTOR SPST 350A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 08097262 |
|---|---|
| Circuit | SPST |
| Current Rating (Amps) | 350 A |
| Ingress Protection | IP65 |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | Off-On |
| Termination Style | Connector, Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 475.12 | |
| 5 | $ 468.03 | |||
| 10 | $ 439.66 | |||
Description
General part information
08097262
Selector Switch Position SPST 350A (DC) Chassis Mount
