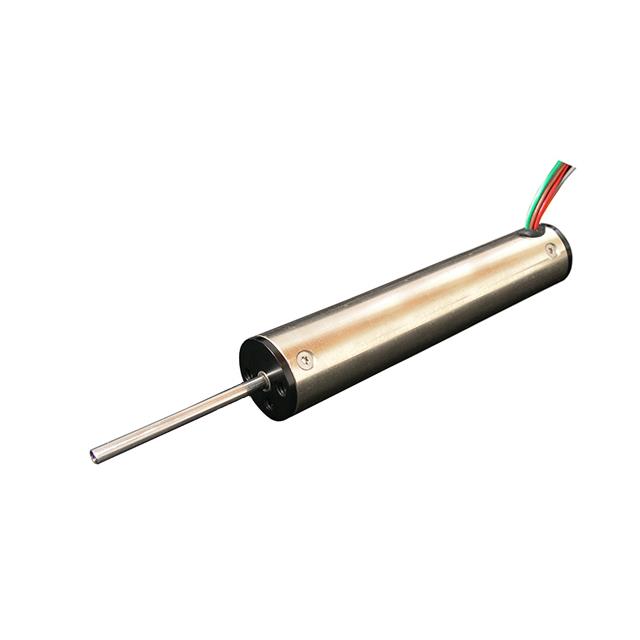

SDLM-019-095-01-01
ActiveMoticont
LINEAR SERVO MOTOR WITH ENCODER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDLM-019-095-01-01
ActiveMoticont
LINEAR SERVO MOTOR WITH ENCODER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDLM-019-095-01-01 |
|---|---|
| Accuracy | 1.25 µm |
| Construction | Linear Motor |
| Duty Cycle | 100 % |
| Features | Encoder, Integrated Sensor |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 6 N |
| Load Force (Dynamic) | 1.35 lbf |
| Load Force (Static) | 0.427 lbf |
| Load Force (Static) | 1.9 N |
| Motor Type | Servo |
| Stroke Length | 1 in |
| Stroke Length | 25.4 mm |
| Termination Style | Wire Leads |
| Type | Linear Actuator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 879.74 | |
| 2 | $ 835.74 | |||
| 5 | $ 761.53 | |||
| 10 | $ 674.49 | |||
Description
General part information
SDLM-019-095-01-01
LINEAR SERVO MOTOR WITH ENCODER
Documents
Technical documentation and resources
