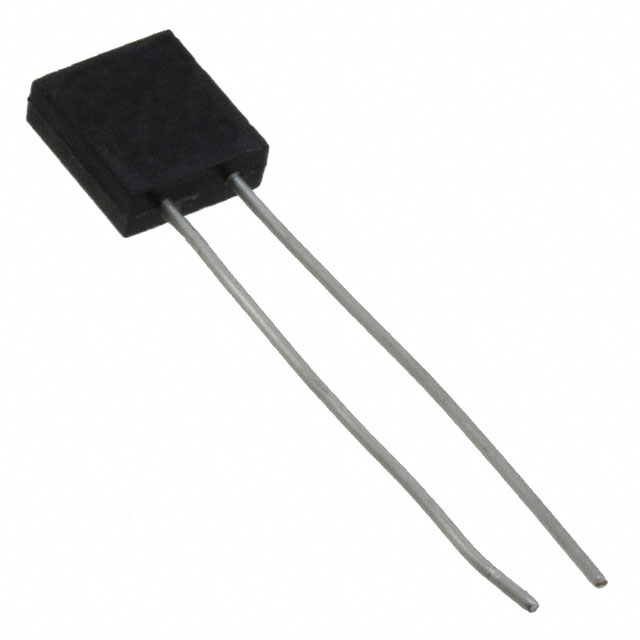

SM10-100RB
ActiveRiedon products by Bourns
RES 100 OHM 0.1% 0.3W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM10-100RB
ActiveRiedon products by Bourns
RES 100 OHM 0.1% 0.3W RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM10-100RB |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Moisture Resistant, Safety, Non-Inductive |
| Height - Seated (Max) [Max] | 8.74 mm |
| Height - Seated (Max) [Max] [z] | 0.344 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 145 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 300 mW |
| Resistance | 100 Ohms |
| Size / Dimension [x] | 0.299 in |
| Size / Dimension [x] | 7.6 mm |
| Size / Dimension [y] | 0.102 " |
| Size / Dimension [y] | 2.6 mm |
| Temperature Coefficient | 20 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 3.47 | |
Description
General part information
SM10-100RB
100 Ohms ±0.1% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
