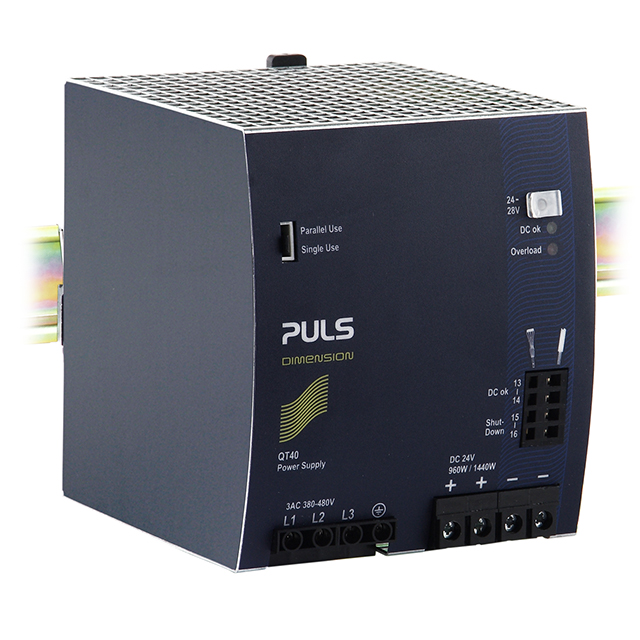

QT40.242
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 960W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QT40.242
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 960W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QT40.242 |
|---|---|
| AC Voltage - Input [Max] | 576 VAC |
| AC Voltage - Input [Min] | 323 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | IEC, EAC, UL |
| Current - Output (Max) [Max] | 40 A |
| Efficiency | 95.2 % |
| Features | PFC, Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 960 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 110 mm |
| Size / Dimension [y] | 4.33 " |
| Size / Dimension [z] | 4.88 " |
| Size / Dimension [z] | 124 mm |
| Standard Number | 61010-2-201, 60950-1, 508 |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 900.00 | |
Description
General part information
QT40.242
AC/DC DIN RAIL SUPPLY 24V 960W
