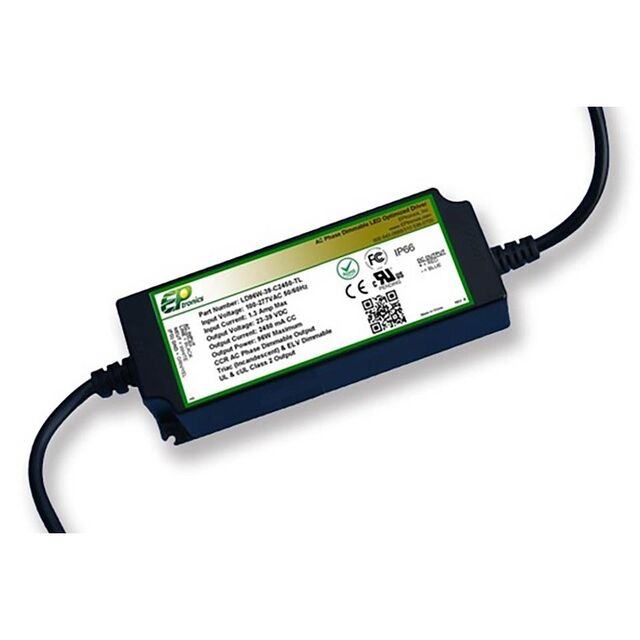

LD96W-54-C1750-TL120
ActiveEPtronics, Inc.
32~54V@1750MA, PHASE DIMMING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD96W-54-C1750-TL120
ActiveEPtronics, Inc.
32~54V@1750MA, PHASE DIMMING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD96W-54-C1750-TL120 |
|---|---|
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 1.75 A |
| Dimming | ELV, TRIAC |
| Efficiency | 91 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 96 W |
| Ratings | IP66 |
| Size / Dimension [x] | 6.28 " |
| Size / Dimension [x] | 159.5 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 38.1 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | C22.2, UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] [custom] | 132 VAC |
| Voltage - Input (Min) [Min] | 108 VAC |
| Voltage - Isolation | 3750 V |
| Weight | 317.52 g |
| Weight | 0.7 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.43 | |
Description
General part information
LD96W-54-C1750-TL120
1.75A 32 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
