KTZ8864AEJAA-TR
ActiveKinetic Technologies
HIGH EFFICIENCY 4-CH LED BACKLIG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTZ8864AEJAA-TR
ActiveKinetic Technologies
HIGH EFFICIENCY 4-CH LED BACKLIG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTZ8864AEJAA-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 30 mA |
| Dimming | PWM, I2C |
| Frequency | 1 MHz, 500 kHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-WFBGA, WLCSP |
| Supplier Device Package | 24-WLCSP |
| Supplier Device Package [x] | 1.72 |
| Supplier Device Package [y] | 2.45 |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 32 VDC |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.77 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.77 | |||
| Tape & Reel (TR) | 3000 | $ 0.66 | ||
Description
General part information
KTZ8864AEJAA-TR

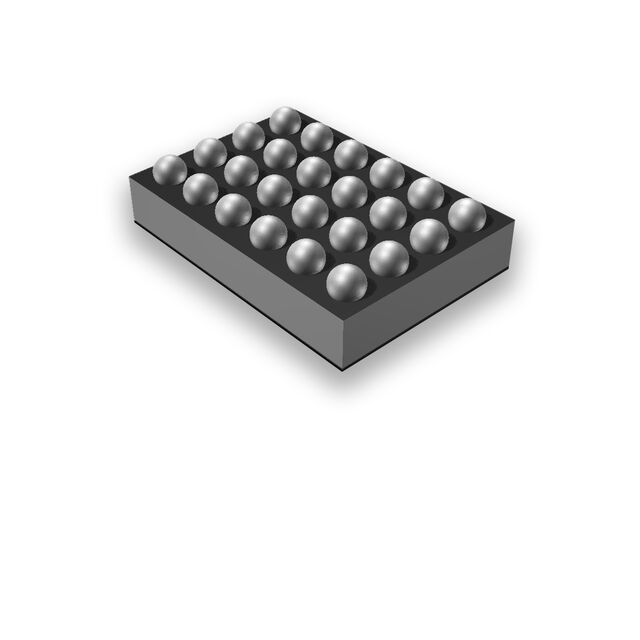

LED Driver IC 4 Output DC DC Regulator Step-Up (Boost) I2C, PWM Dimming 30mA 24-WLCSP (1.72x2.45)
