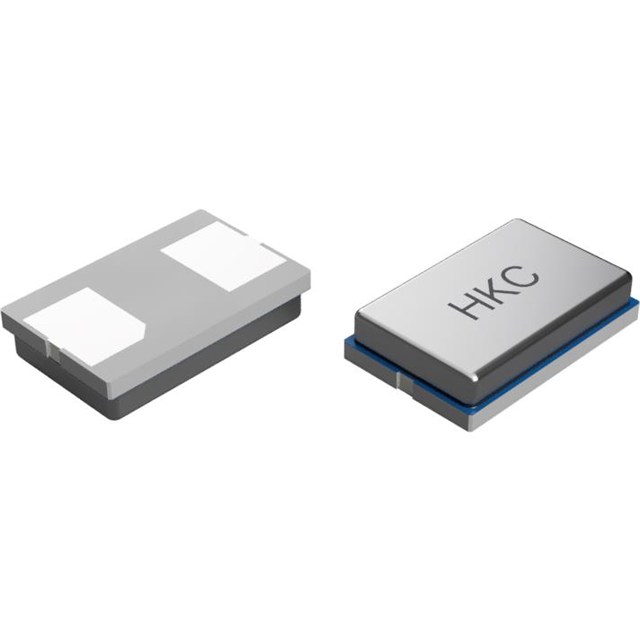

5032H20800BMDAJDENE-TR
ActiveHKC
CRYSTAL HX 8MHZ 20PPM 18PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5032H20800BMDAJDENE-TR
ActiveHKC
CRYSTAL HX 8MHZ 20PPM 18PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5032H20800BMDAJDENE-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 8 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
5032H20800BMDAJDENE-TR
8 MHz ±20ppm Crystal 18pF 150 Ohms 2-SMD, No Lead
Documents
Technical documentation and resources
