20698-056E-01
ActiveI-PEX

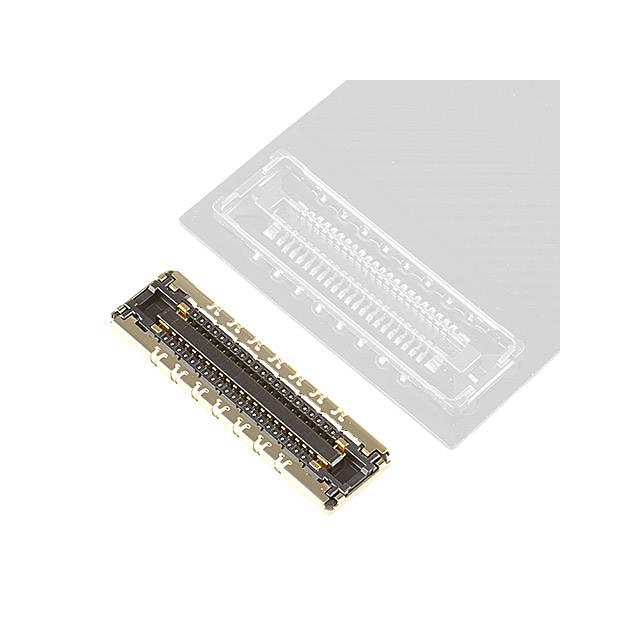

NOVASTACK 35-HDP RECEPTACLE 56P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20698-056E-01
ActiveI-PEX
NOVASTACK 35-HDP RECEPTACLE 56P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20698-056E-01 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94 µin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Shielded |
| Height Above Board | 0.023 in |
| Height Above Board | 0.59 mm |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 56 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.32 | |
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| 2500 | $ 1.20 | |||
| Digi-Reel® | 1 | $ 2.32 | ||
| 10 | $ 2.02 | |||
| 25 | $ 1.93 | |||
| 50 | $ 1.89 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.29 | |||
| 2500 | $ 1.20 | |||
| Tape & Reel (TR) | 10000 | $ 1.06 | ||
Description
General part information
20698-056E-01
60 (56 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
