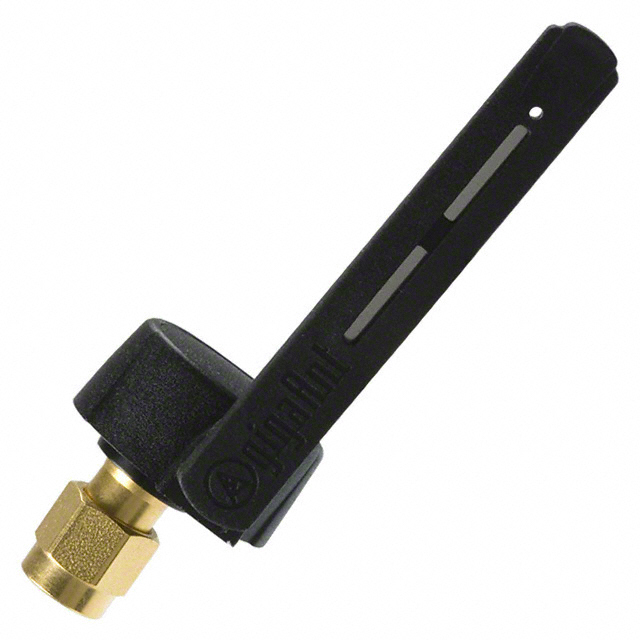

B4844
ObsoleteAntenova
RF ANT 2.4GHZ BLADE SMA MALE PAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B4844 |
|---|---|
| Antenna Type | Blade |
| Applications | Zigbee™, WiMedia™, Bluetooth, WLAN |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.2 dBi |
| Height (Max) [Max] | 48.3 mm |
| Height (Max) [Max] | 1.902 in |
| Number of Bands | 1 |
| Return Loss | -13 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 1.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
B4844
RF ANTENNA Bluetooth, WiMedia™, WLAN, Zigbee™ Blade SMA Male Panel Mount
