5ESDF-05P-BK
ActiveDinkle Corporation, USA

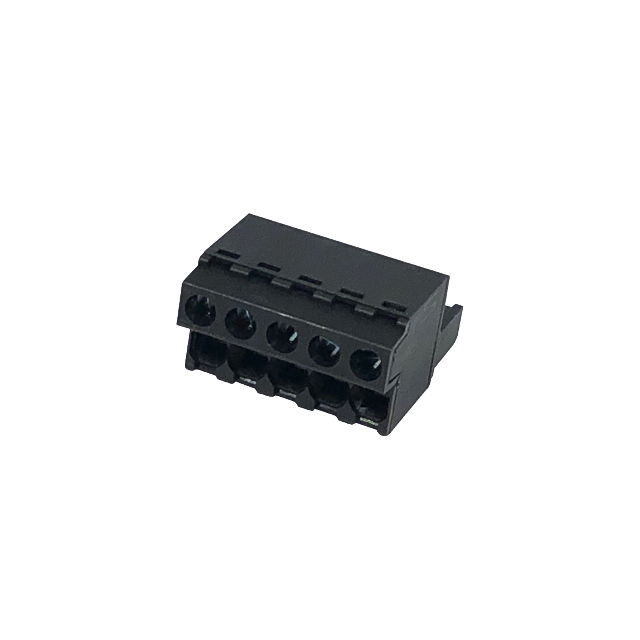

TERM BLK 5POS 5.00MM SCRW PLG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5ESDF-05P-BK
ActiveDinkle Corporation, USA
TERM BLK 5POS 5.00MM SCRW PLG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5ESDF-05P-BK |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Current - IEC | 18 A |
| Features | Retention Latches |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 5 |
| Termination Style | Screw |
| Type | Plug, Female Sockets |
| Voltage - IEC | 600 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.46 | |
| 10 | $ 6.34 | |||
| 50 | $ 5.50 | |||
| 100 | $ 5.07 | |||
| 200 | $ 4.65 | |||
| 500 | $ 4.23 | |||
| 1000 | $ 3.81 | |||
Description
General part information
5ESDF-05P-BK
5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line)
