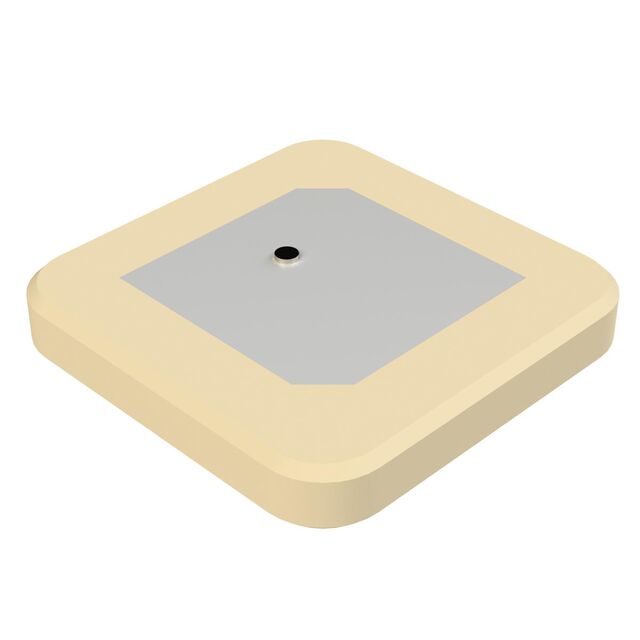

MPA-406-1612/189-00050-01
ActiveMaxtena Inc
PASSIVE GPS IRIDIUM MICROSTRIP A
Deep-Dive with AI
Search across all available documentation for this part.
MPA-406-1612/189-00050-01
ActiveMaxtena Inc
PASSIVE GPS IRIDIUM MICROSTRIP A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPA-406-1612/189-00050-01 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS |
| Frequency (Center/Band) | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.64 GHz |
| Frequency Range [Min] | 1.565 GHz |
| Gain | 2 dBic |
| Height (Max) | 6.5 mm |
| Height (Max) | 0.256 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 10.49 | |
| 10 | $ 9.64 | |||
| 25 | $ 9.24 | |||
Description
General part information
MPA-406-1612/189-00050-01
RF ANTENNA GPS Ceramic Patch Connector Connector Mount
Documents
Technical documentation and resources
No documents available
