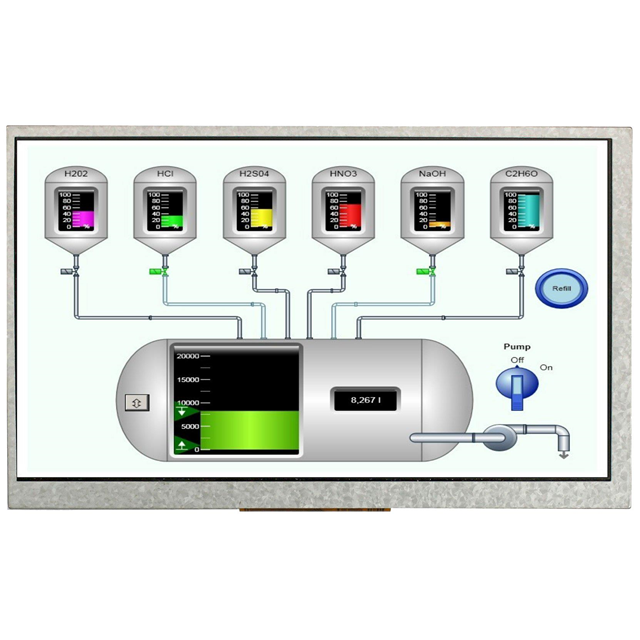

MDT0700ESH-HDMI
ActiveMIDAS DISPLAYS
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDT0700ESH-HDMI
ActiveMIDAS DISPLAYS
GRAPHIC DISPLAY TFT RGB 7"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0700ESH-HDMI |
|---|---|
| Backlight | LED - White |
| Controller Type | TFP401 |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [y] | 0.15 mm |
| Dot Pitch [z] | 0.14 mm |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 |
| Graphics Color | Green, Red, Blue |
| Interface | HDMI |
| Touchscreen | Non-Touch |
| Viewing Area [y] | 154.21 mm |
| Viewing Area [z] | 85.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 75.07 | |
| 10 | $ 72.99 | |||
| 30 | $ 71.01 | |||
| 50 | $ 70.07 | |||
| 100 | $ 69.15 | |||
| 200 | $ 68.25 | |||
| 300 | $ 64.09 | |||
Description
General part information
MDT0700ESH-HDMI
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI 7" (177.80mm) 1024 x 600 (WSVGA)
