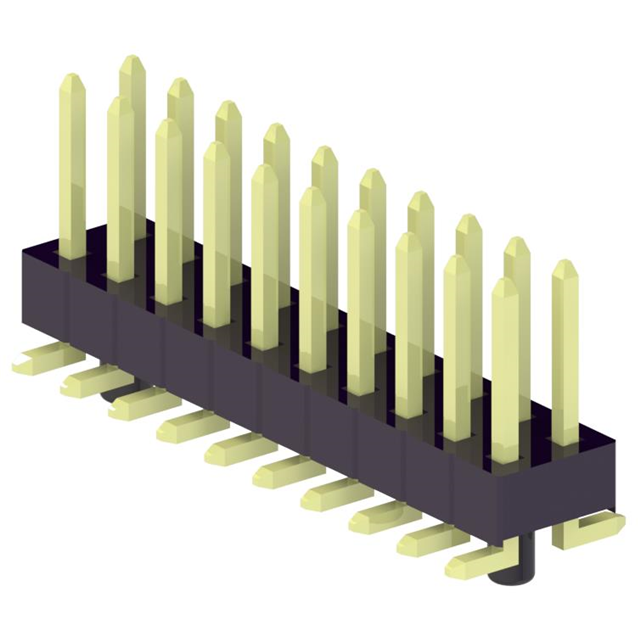

TSHSM-112-D-08-GT-V-LF
ActiveMajor League Electronics
.100 HEADER
Deep-Dive with AI
Search across all available documentation for this part.
TSHSM-112-D-08-GT-V-LF
ActiveMajor League Electronics
.100 HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSHSM-112-D-08-GT-V-LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating [x] | 6.22 mm |
| Contact Length - Mating [x] | 0.245 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.19 | |
Description
General part information
TSHSM-112-D-08-GT-V-LF
Connector Header Surface Mount 24 position 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
