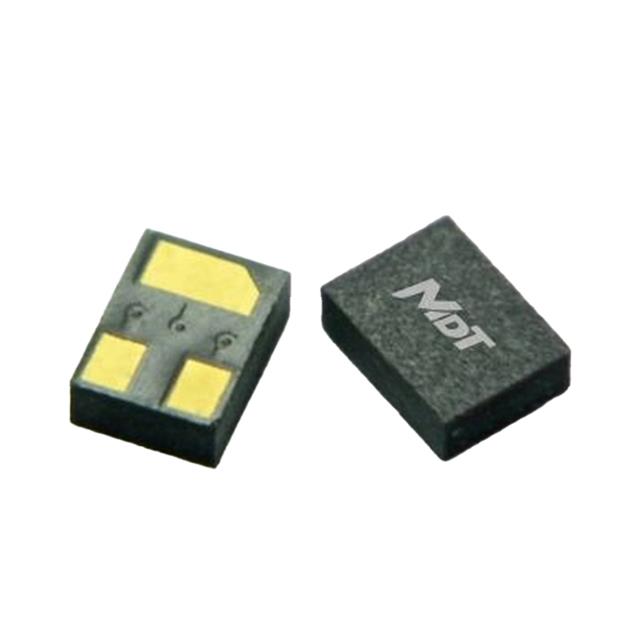

AMR1342G
ActiveMDT
AMR SW OMNI 27G 1.6-5V ACTIVE-HI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMR1342G
ActiveMDT
AMR SW OMNI 27G 1.6-5V ACTIVE-HI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMR1342G |
|---|---|
| Current - Output (Max) [Max] | 20 mA |
| Current - Supply (Max) [Max] | 40 µA |
| Features | Temperature Compensated |
| Function | Omnipolar Switch, Latch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | CMOS |
| Package / Case | 3-WFLGA |
| Polarization | South Pole, North Pole |
| Sensing Range | 2.7 mT, 3.5 mT |
| Supplier Device Package | 3-LGA (2x1.5) |
| Technology | Magnetoresistive |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 0.65 | |
| 30 | $ 0.64 | |||
| 100 | $ 0.63 | |||
| 300 | $ 0.61 | |||
| 1000 | $ 0.60 | |||
| 4000 | $ 0.44 | |||
| 12000 | $ 0.37 | |||
| 40000 | $ 0.32 | |||
Description
General part information
AMR1342G
Digital Switch Latch, Omnipolar Switch CMOS Magnetoresistive 3-LGA (2x1.5)
