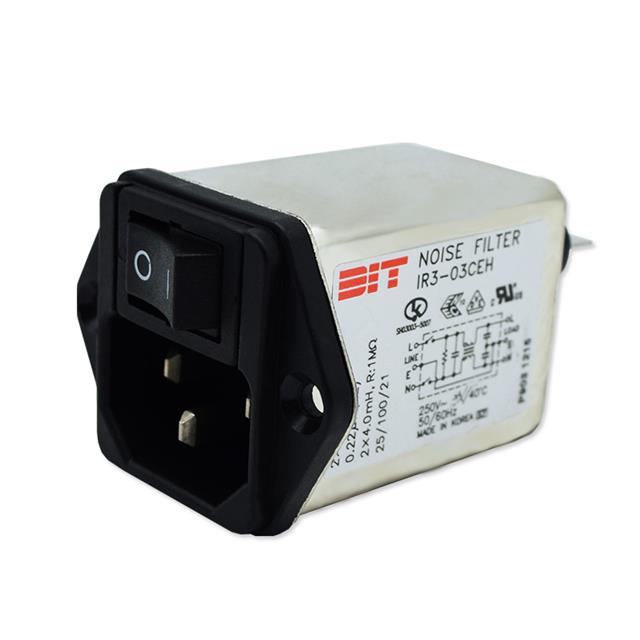

IR3-N06CDH
ActiveDIT
LINE FLTR 250VAC/VDC 6A PANEL
Deep-Dive with AI
Search across all available documentation for this part.
IR3-N06CDH
ActiveDIT
LINE FLTR 250VAC/VDC 6A PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IR3-N06CDH |
|---|---|
| Applications | Medical |
| Approval Agency | UR, VDE, CSA, ENEC |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect, IEC 320-C14 |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.96 | |
| 10 | $ 11.01 | |||
| 25 | $ 10.32 | |||
| 60 | $ 9.70 | |||
| 120 | $ 9.24 | |||
| 300 | $ 8.66 | |||
| 540 | $ 8.31 | |||
| 1020 | $ 7.95 | |||
Description
General part information
IR3-N06CDH
Single Phase EMC/EMI Line Filter 6 A 250V 250V 50 ~ 60Hz Single Stage IEC 320-C14, Quick Connect
