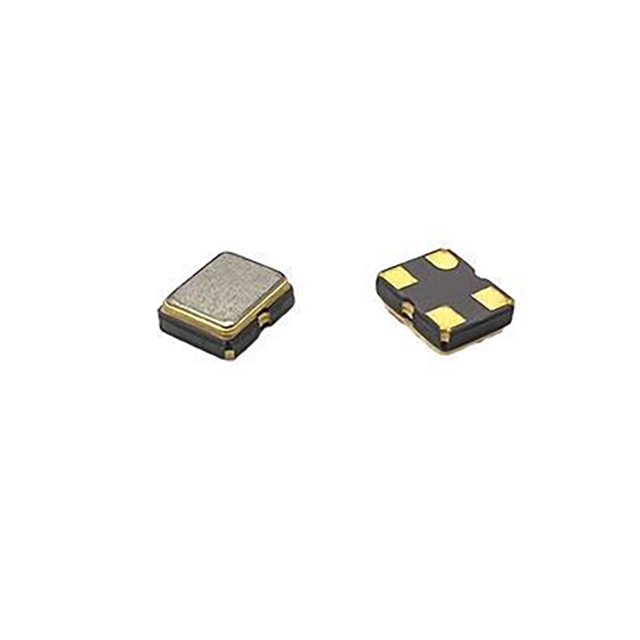

SM3344KE-32.768K
ActivePletronics
PLETRONICS SM33K SERIES IS A QUA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM3344KE-32.768K
ActivePletronics
PLETRONICS SM33K SERIES IS A QUA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3344KE-32.768K |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 35 µA |
| Frequency | 32.768 kHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.81 mm |
| Height - Seated (Max) [Max] | 0.032 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.98 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.65 | |||
| Digi-Reel® | 1 | $ 2.07 | ||
| 10 | $ 1.98 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.65 | |||
| Tape & Reel (TR) | 250 | $ 1.65 | ||
| 500 | $ 1.61 | |||
| 750 | $ 1.47 | |||
| 1250 | $ 1.36 | |||
| 2500 | $ 1.29 | |||
| 6250 | $ 1.24 | |||
Description
General part information
SM3344KE-32.768K
32.768 kHz XO (Standard) CMOS Oscillator 1.6V ~ 3.63V Enable/Disable 4-SMD, No Lead
