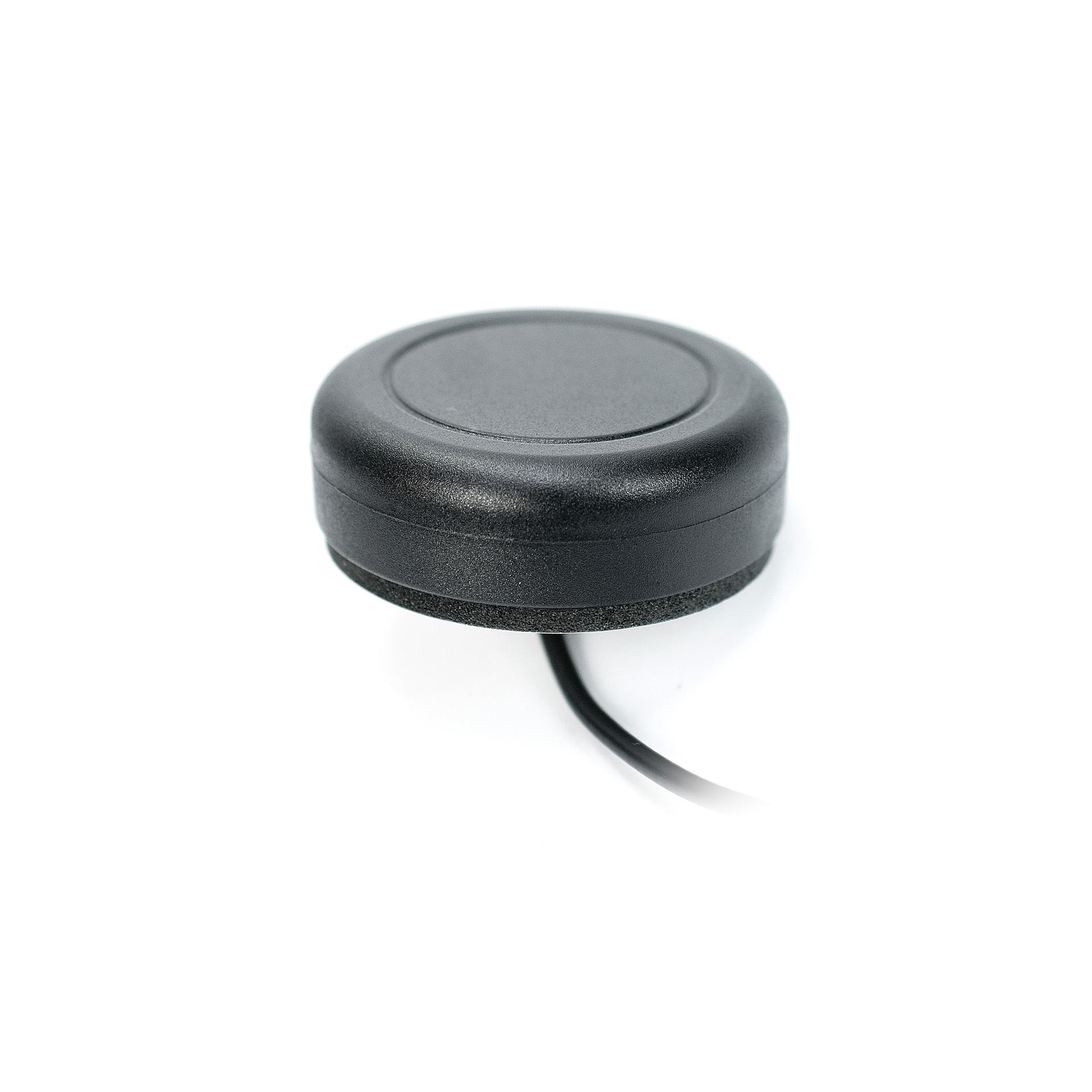

2J4715B-868
Active2J Antennas
BEETLE 868MHZ/SIGFOX/LORA/LPWA/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2J4715B-868
Active2J Antennas
BEETLE 868MHZ/SIGFOX/LORA/LPWA/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J4715B-868 |
|---|---|
| Antenna Type | Dome |
| Applications | Sigfox, ISM, LoRa, Zigbee™ |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 870 MHz |
| Frequency Range [Min] | 863 MHz |
| Gain | 2.6 dBi |
| Height (Max) [Max] | 0.689 in |
| Height (Max) [Max] | 17.5 mm |
| Ingress Protection | IP69K |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 25 W |
| Return Loss | -21.3 dB |
| RF Family/Standard | General ISM, 802.15.4 |
| VSWR | 1.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.35 | |
| 10 | $ 17.51 | |||
| 25 | $ 16.13 | |||
| 100 | $ 14.74 | |||
| 250 | $ 13.82 | |||
| 500 | $ 12.90 | |||
Description
General part information
2J4715B-868
866.5MHz ISM, LoRa, Sigfox, Zigbee™ Dome RF Antenna 863MHz ~ 870MHz 2.6dBi SMA Male Screw Mount
