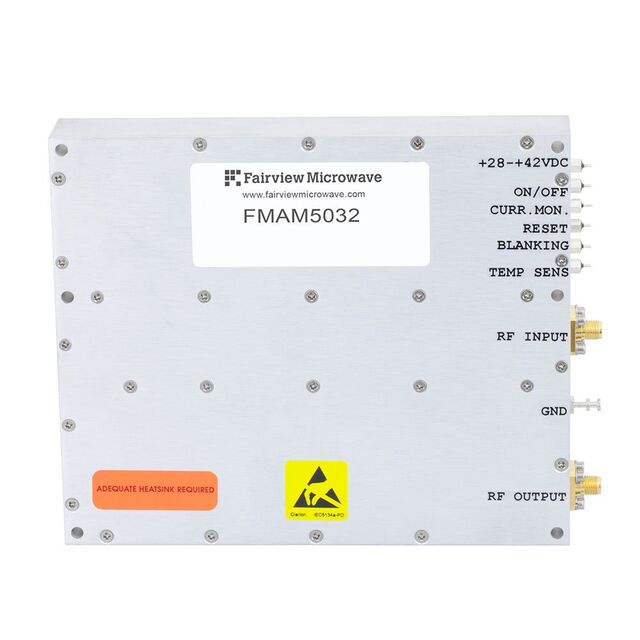

FMAM5032
ActiveFairview Microwave
POWER AMP 500MHZ-3GHZ P1DB SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMAM5032
ActiveFairview Microwave
POWER AMP 500MHZ-3GHZ P1DB SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM5032 |
|---|---|
| Current - Supply | 8.333 A |
| Frequency [Max] | 3 GHz |
| Frequency [Min] | 500 MHz |
| Gain | 48 dB |
| Mounting Type | Chassis Mount |
| P1dB | 44 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 42 V |
| Voltage - Supply [Min] | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5497.58 | |
Description
General part information
FMAM5032
RF Amplifier IC General Purpose 500MHz ~ 3GHz Module
Documents
Technical documentation and resources
