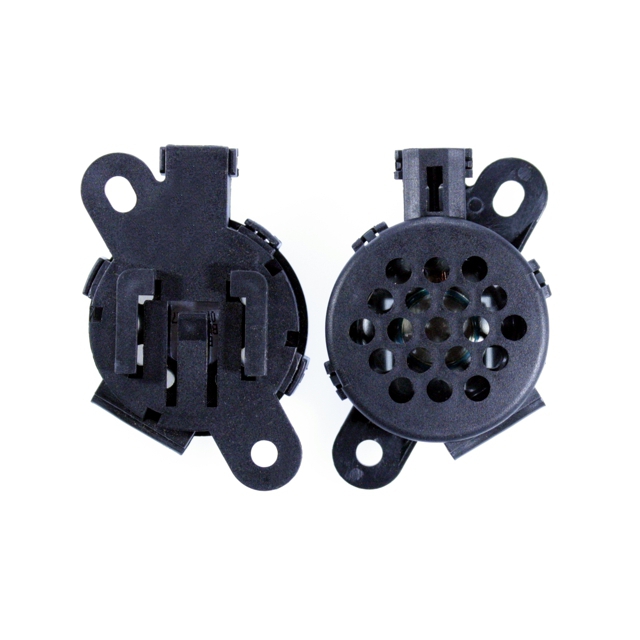

BMS3650C
ActiveBeStar Technologies, Inc.
SPEAKER 50OHM 1W TOP PORT 79DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMS3650C
ActiveBeStar Technologies, Inc.
SPEAKER 50OHM 1W TOP PORT 79DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMS3650C |
|---|---|
| Efficiency - dBA | 79 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 540 Hz |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Impedance | 50 Ohms |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.417 in |
| Size / Dimension [diameter] | 36 mm |
| Technology | Magnetic |
| Termination | Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 16.00 | |
| 25 | $ 10.67 | |||
| 50 | $ 8.00 | |||
| 100 | $ 5.33 | |||
Description
General part information
BMS3650C
50 Ohms General Purpose Speaker 1 W Top Round
