VY2222M35Y5US63V0
ActiveVishay General Semiconductor - Diodes Division
CAP CER 2200PF 440VAC Y5U RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VY2222M35Y5US63V0 |
|---|---|
| Applications | Safety |
| Capacitance | 2200 pF |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Ratings [custom] | 2 |
| Ratings [custom] | 1 |
| Size / Dimension [diameter] | 9 mm |
| Size / Dimension [diameter] | 0.354 in |
| Temperature Coefficient | Y5U (E) |
| Tolerance | 20 % |
| Voltage - Rated | 440 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
Description
General part information
VY2222M35Y5US63V0

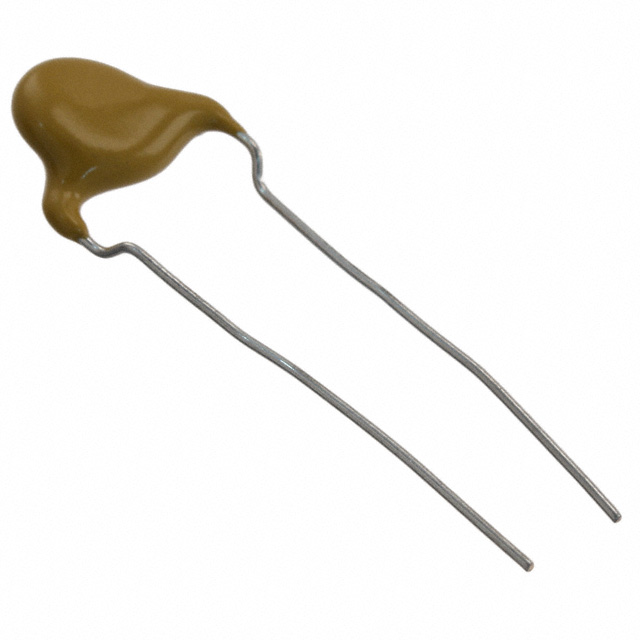

2200 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
