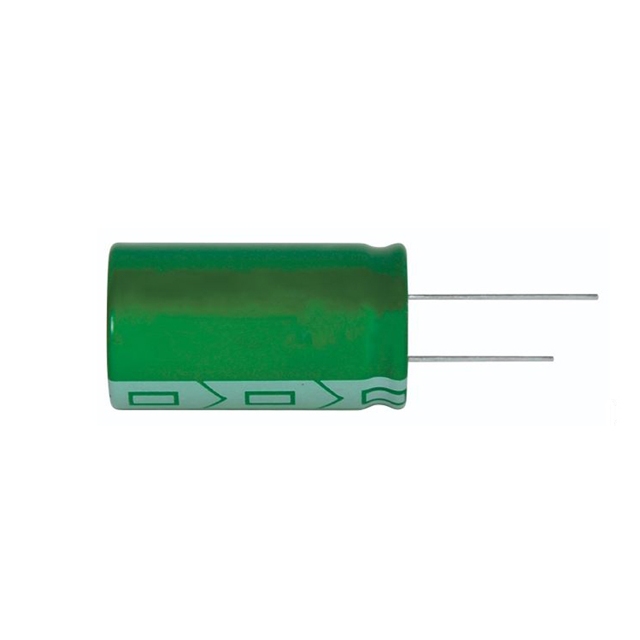

DRL505Q0TG20RR
ActiveANGA POW
CAP 5F 2.7V T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DRL505Q0TG20RR
ActiveANGA POW
CAP 5F 2.7V T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DRL505Q0TG20RR |
|---|---|
| Capacitance | 5 F |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Height - Seated (Max) [Max] | 0.945 in |
| Height - Seated (Max) [Max] | 22 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
Description
General part information
DRL505Q0TG20RR
5 F (EDLC) Supercapacitor 2.7 V Radial, Can 90mOhm @ 1kHz 1000 Hrs @ 65°C
