LD12W120-16-C0800-TL
ActiveEPtronics, Inc.
10~16V@800MA, PHASE DIMMING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD12W120-16-C0800-TL
ActiveEPtronics, Inc.
10~16V@800MA, PHASE DIMMING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD12W120-16-C0800-TL |
|---|---|
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 800 mA |
| Dimming | ELV, TRIAC |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 12.8 W |
| Ratings | IP66 |
| Size / Dimension [x] | 85.1 mm |
| Size / Dimension [x] | 3.35 in |
| Size / Dimension [y] | 36.1 mm |
| Size / Dimension [y] | 1.42 in |
| Size / Dimension [z] | 23.1 mm |
| Size / Dimension [z] | 0.91 in |
| Standard Number | C22.2, UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] [custom] | 132 VAC |
| Voltage - Input (Min) [Min] | 108 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 16 V |
| Voltage - Output [Min] | 10 V |
| Weight | 127.6 g |
| Weight | 0.281 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.55 | |
Description
General part information
LD12W120-16-C0800-TL

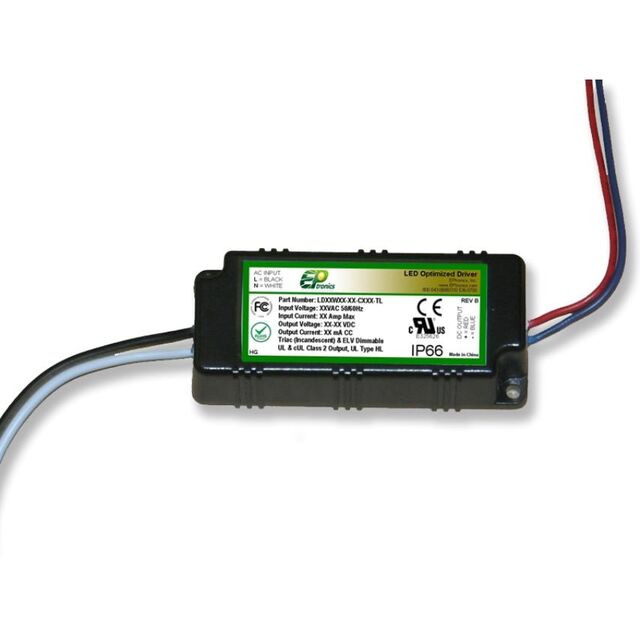

800mA 10 ~ 16V Constant Current LED Driver AC DC Converter Topology 1 Output
