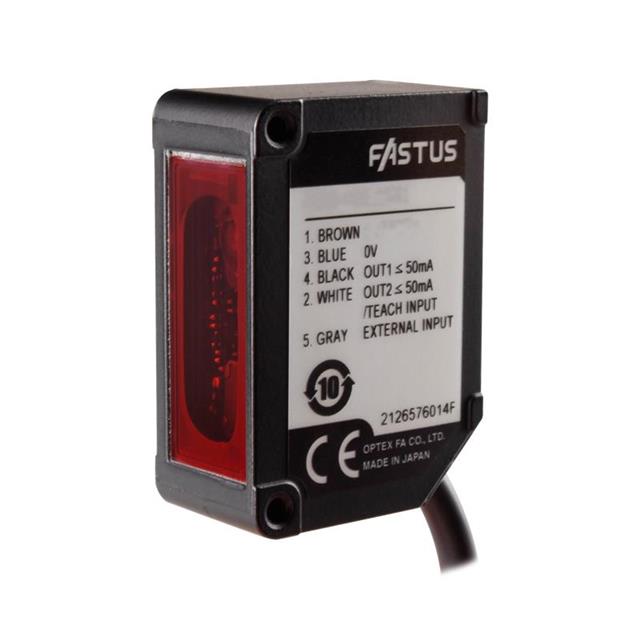

CD22-35A
ActiveOptex FA
DISPLACEMENT SENSOR NPN/PNP 2M
Deep-Dive with AI
Search across all available documentation for this part.
CD22-35A
ActiveOptex FA
DISPLACEMENT SENSOR NPN/PNP 2M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CD22-35A |
|---|---|
| Features | Amplifier Included |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Installation Distance [Max] | 50 mm |
| Installation Distance [Min] | 20 mm |
| Light Source | Integrated (Red) |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Termination Style | Cable Leads |
| Type | 2D Laser Displacement Sensor |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 700.00 | |
Description
General part information
CD22-35A
2D Laser Displacement Sensor Chassis Mount
Documents
Technical documentation and resources
No documents available
