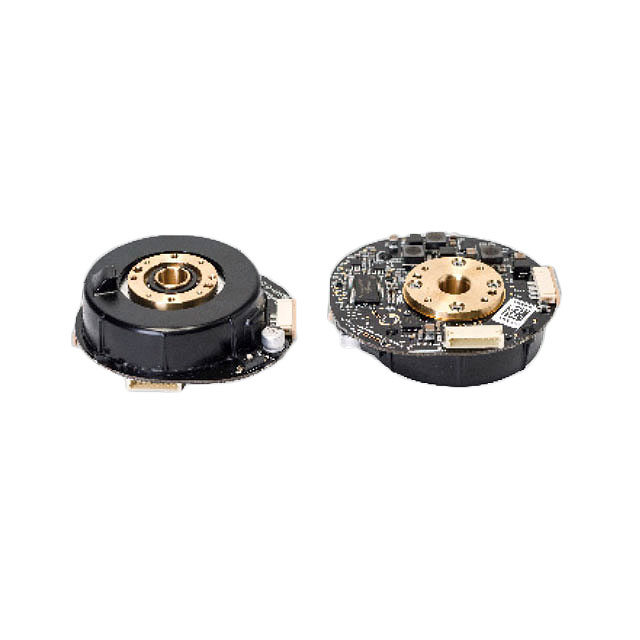

LETO IBLDC MOTOR WITH END STOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OVU00243-004
ActiveOverview Ltd
LETO IBLDC MOTOR WITH END STOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OVU00243-004 |
|---|---|
| Features | Integrated Controller |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 120 RPM |
| Size / Dimension [x] | 2.205 in |
| Size / Dimension [x] | 56 mm |
| Size / Dimension [y] | 0.846 in |
| Size / Dimension [y] | 21.5 mm |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 90 mNm |
| Torque - Rated (oz-in / mNm) | 12.74 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 212.26 | |
| 5 | $ 195.07 | |||
| 10 | $ 188.10 | |||
| 25 | $ 183.88 | |||
Description
General part information
OVU00243-004
Brushless (BLDC) DC Motor Servomotor 120 RPM 24VDC
