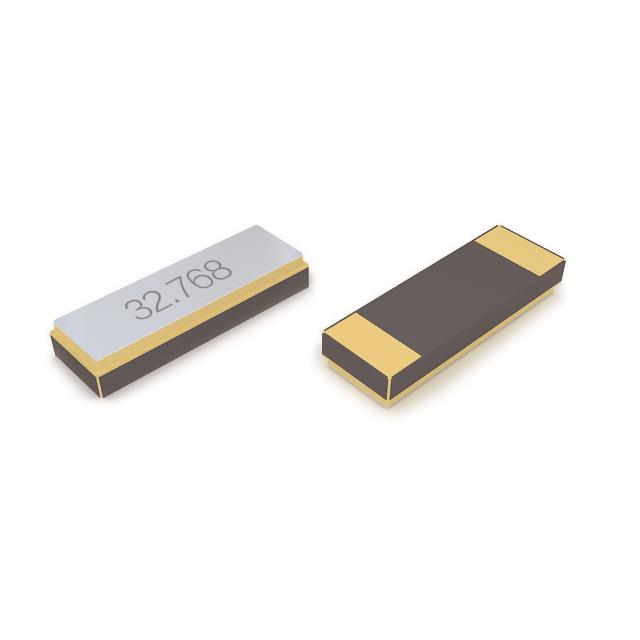

DH2032K76806T1521008
ActiveHefei Jingweite Electronics Co., Ltd.
3215 TUNING FORK 32.768KHZ 6PF 7
Deep-Dive with AI
Search across all available documentation for this part.
DH2032K76806T1521008
ActiveHefei Jingweite Electronics Co., Ltd.
3215 TUNING FORK 32.768KHZ 6PF 7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DH2032K76806T1521008 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.24 | |
| 6000 | $ 0.22 | |||
| 9000 | $ 0.21 | |||
| 15000 | $ 0.20 | |||
| 21000 | $ 0.20 | |||
| 30000 | $ 0.19 | |||
Description
General part information
DH2032K76806T1521008
32.768 kHz ±20ppm Crystal 6pF 70 kOhms 2-SMD, No Lead
Documents
Technical documentation and resources
