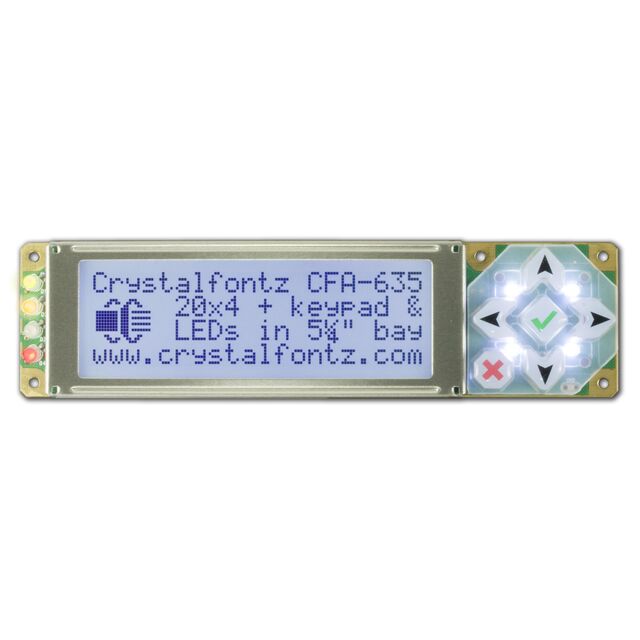

CFA635-TFK-KL
ActiveCrystalfontz
LIGHT BLUE SERIAL 20X4 CHARACTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFA635-TFK-KL
ActiveCrystalfontz
LIGHT BLUE SERIAL 20X4 CHARACTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFA635-TFK-KL |
|---|---|
| Background Color | Gray |
| Backlight | LED - White |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size [custom] | 0.65 mm |
| Dot Size [custom] | 0.6 mm |
| Interface | Serial |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 142 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 20.8 mm |
| Text Color | Dark |
| Viewing Area [x] | 82.95 mm |
| Viewing Area [y] | 27.5 mm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 129.04 | |
| 10 | $ 127.34 | |||
| 20 | $ 118.76 | |||
| 50 | $ 110.24 | |||
| 100 | $ 101.43 | |||
| 200 | $ 92.60 | |||
| 500 | $ 83.89 | |||
| 1000 | $ 76.92 | |||
Description
General part information
CFA635-TFK-KL
Character Display Module Transflective FSTN - Film Super-Twisted Nematic LED - White Serial 142.00mm x 37.00mm x 20.80mm
