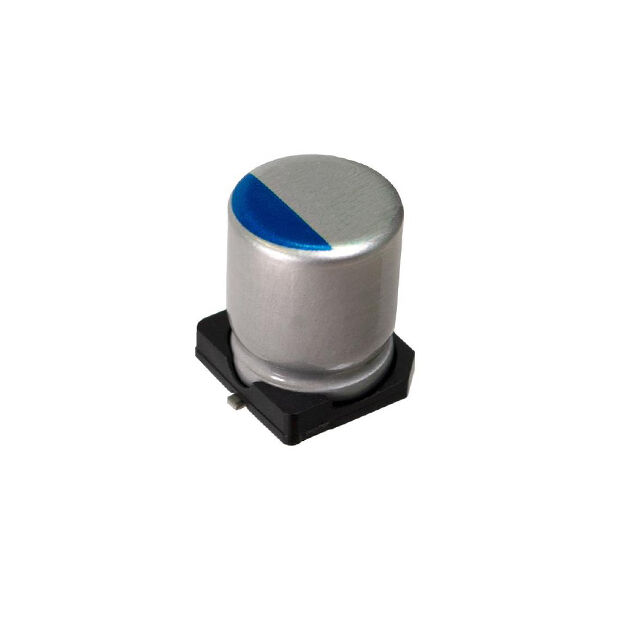

RSHV1220M1GCC8002E
ActiveElna America
ALUM ELECT CAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSHV1220M1GCC8002E
ActiveElna America
ALUM ELECT CAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSHV1220M1GCC8002E |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 100 mOhms |
| Height - Seated (Max) [Max] [z] | 0.24 in |
| Height - Seated (Max) [Max] [z] | 6.1 mm |
| Lifetime @ Temp. | 10000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 900 mA |
| Ripple Current @ Low Frequency | 90 mA |
| Size / Dimension [diameter] | 5 mm |
| Size / Dimension [diameter] | 0.197 " |
| Surface Mount Land Size [x] | 0.209 in |
| Surface Mount Land Size [x] | 5.3 mm |
| Surface Mount Land Size [y] | 5.3 mm |
| Surface Mount Land Size [y] | 0.209 in |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.40 | |
| 10000 | $ 0.29 | |||
Description
General part information
RSHV1220M1GCC8002E
22 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 100mOhm 10000 Hrs @ 105°C
