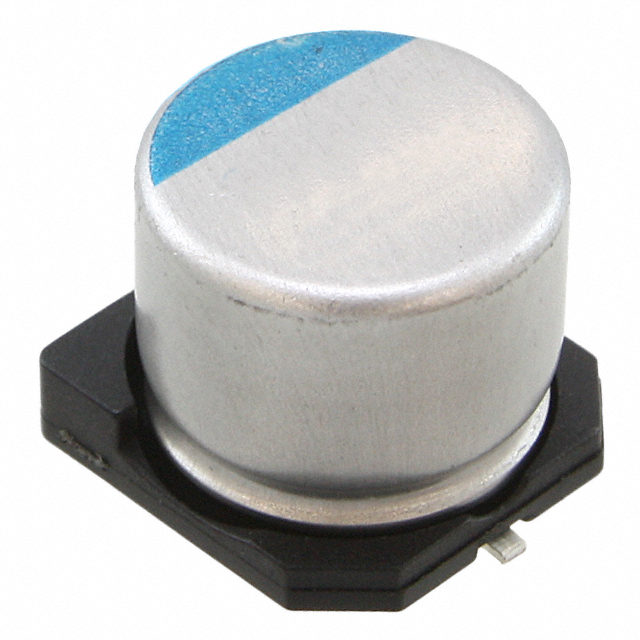

PVH-20V390MG70E-R2
ObsoleteElna America
CAP ALUM POLY 39UF 20% 20V SMD
Deep-Dive with AI
Search across all available documentation for this part.
PVH-20V390MG70E-R2
ObsoleteElna America
CAP ALUM POLY 39UF 20% 20V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PVH-20V390MG70E-R2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 39 µF |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Height - Seated (Max) [Max] | 7 mm |
| Height - Seated (Max) [Max] | 0.276 " |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 2 A |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Surface Mount Land Size [x] | 8.4 mm |
| Surface Mount Land Size [x] | 0.331 in |
| Surface Mount Land Size [y] | 8.4 mm |
| Surface Mount Land Size [y] | 0.331 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.97 | |
| 10 | $ 1.29 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.92 | |||
| 500 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 2.01 | ||
| 10 | $ 1.28 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.75 | |||
| Tape & Reel (TR) | 1000 | $ 0.71 | ||
Description
General part information
PVH-20V390MG70E-R2
39 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
