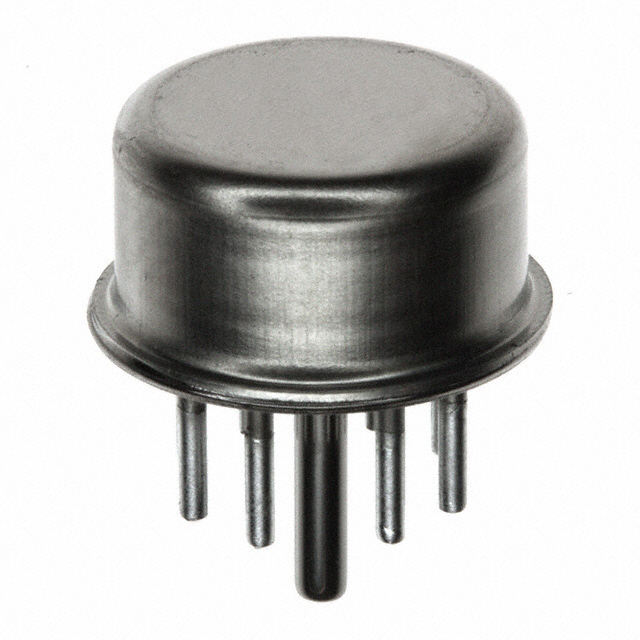

BMD040-3MP

Obsolete

Bosch Sensortec

SENS 435.11PSIA .059" .0005A TO8

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SENS 435.11PSIA .059" .0005A TO8

Technical Specifications

Parameters and characteristics for this part

Specification	BMD040-3MP

Accuracy	2 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	4500 kPa
Maximum Pressure [Max]	652.67 PSI
Mounting Type	Through Hole
Operating Pressure [Max]	3000 kPa
Operating Pressure [Max]	435.11 PSI
Operating Pressure [Min]	50 kPa
Operating Pressure [Min]	7.25 PSI
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output [Max]	0.5 mA
Output [Min]	-1 mA
Output Type	Analog Current
Package / Case	TO-233AA, TO-8-3 Metal Can
Port Size	0.059 "
Port Size	1.5 mm
Port Style	Barbless
Supplier Device Package	TO-8
Termination Style	PC Pin
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 7.25PSI ~ 435.11PSI (50kPa ~ 3000kPa) Absolute Male - 0.059" (1.5mm) Tube -1 mA ~ 0.5 mA TO-233AA, TO-8-3 Metal Can
