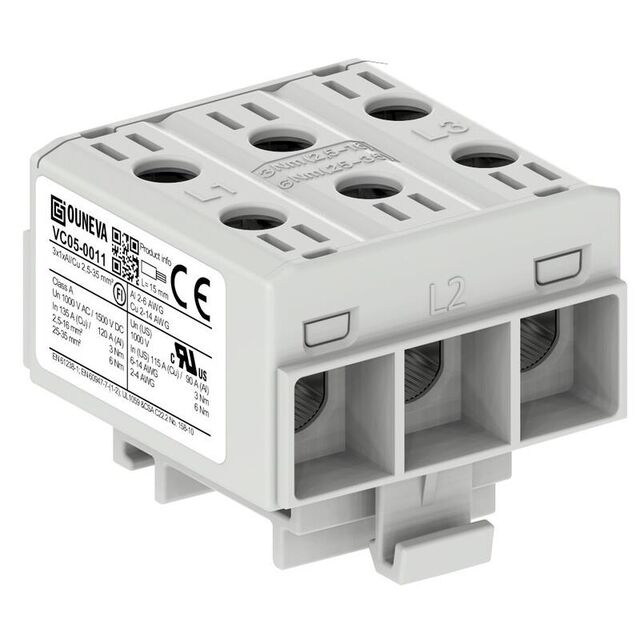

VC05-0011
ActiveOuneva
OTL 3X1XAL/CU 2,5-35MM GREY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VC05-0011
ActiveOuneva
OTL 3X1XAL/CU 2,5-35MM GREY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0011 |
|---|---|
| Current Rating (Amps) | 135 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size [Max] | 14 AWG |
| Line Side Wire/Stud Size [Min] | 2 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size [Max] | 14 AWG |
| Load Side Wire/Stud Size [Min] | 2 AWG |
| Number of Poles | 3 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 18 | $ 20.51 | |
| 882 | $ 16.26 | |||
Description
General part information
VC05-0011
3 Pole Power Distribution Block 135 A 1500 V
